| Industrial output | ≤12000 pcs/hr |
| Dough ball size | 25-60 g/pcs |
| Belt width | 1000 mm |
| Bread size | ≤8 in |
| Power | 102kw |
| Linear speed | ≤12m/min |
| Product shape | Round |
| Hopper height | 900mm |
| Line size | L 12.5m* W 3.0m* H 3.2m |
| Machine weight | 6.5t |
- World famous electrical components
- Food grade stainless steel and conveyor belt.
- Controlled by PLC and touch screen
- Equipped with Video monitoring equipment, easy to watch the running situation of main part to reduce the downtime.
- Remote control system to found and optimize the abnormal data
| Production capacity | 2400pcs/h |
| Product diameter | Max. 220mm |
| Power | 0.4kw |
| Machine weight | 500kg |
| Overall dimension | 3300*1630*1400mm |
| Product weight | 50 - 150 g/pcs |

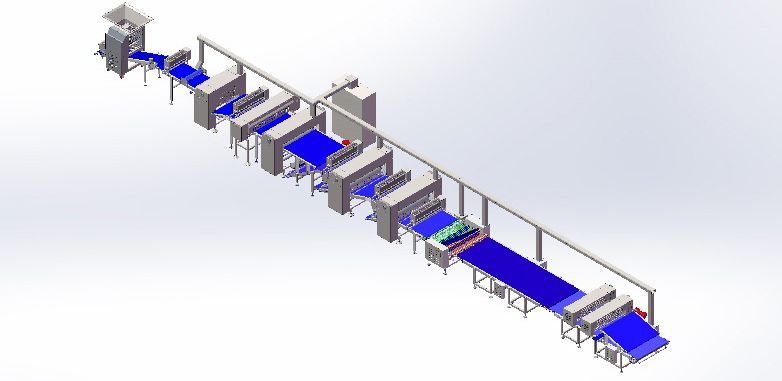

In order to meet clients grand industrial production capacity requirements, FOODLINE designed a line to produce tortilla in the way of rotary cutting. And it has already be very popular in the market. This line ensures the tortilla with more uniform thickness and size to higher the quality of the final products.
Also, This forming line is able to be connected to oven, cooler and package machine. Baking time and temperature is adjustable and line can be designed to be placed well at your existing factory/plant.

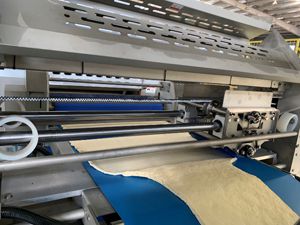

Cross sheeter
To roll the dough belt horizontally to release its longitudinal tension

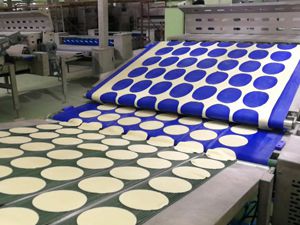

Rotary cutting table with dough scrap return unit
Cutter size can be tailored according to clear demand. Speeding is adjustable.
| Industrial output | Max. ≤23000pcs/min |
| Belt width | 850mm |
| Dough width | ≤800 mm |
| Dough thickness | 1mm-10mm |
| Power | 15kw |
| Linear speed | ≤9m/min |
| Product shape | Round, square, and other customized shape |
| Line type | Straight |
| Hopper volume | No more than 200kg/time |
| Hopper height | 2100mm |
| Line size | L 14m* W 2.5m* H 2.2m |
| Machine weight | 5300kg |

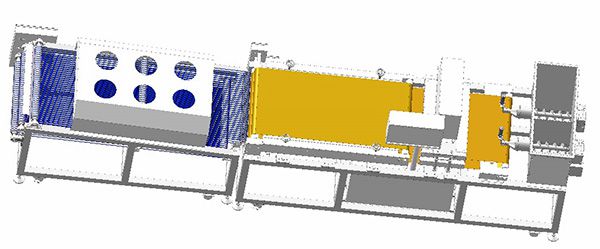

SLBM tortilla line is very popular to small investors because of it small size and stable production capacity. This line is consist of 4 parts: Dough hopper, extruders, oven and S shape cooler. The dough of moisture≥ 65% works well on this system.
Tortillas size and baking temperature can be adjusted automatically on the touch screen.
PLC language is chosen by clients’ needs.
| Product type | Thin bread with moisture of 50%-80%, thickness: adjustable |
| Product size | 4 ins, 8 ins, 11 ins |
| Production capacity of 2 extruders | 4000pcs/h for 4 ins, 2000pcs/h for 8 ins and 11ins |
| Total power | 32KW |
| Belt with | 700 mm |
| Main material | 304 stainless steel |
| Line size | L5.1m*W1.2*H1.53M |
-

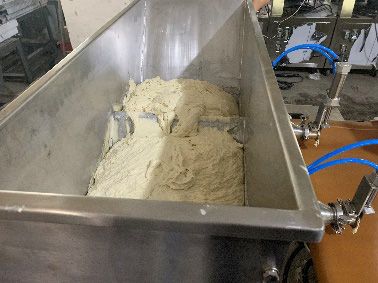

Hopper
-

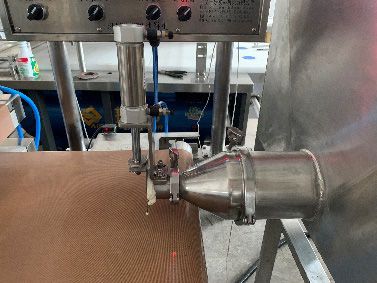

Extruder
-

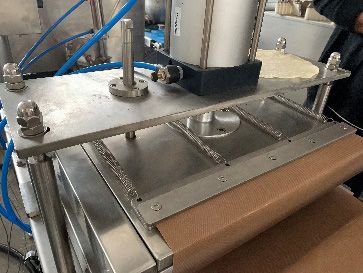

Heating plate
-

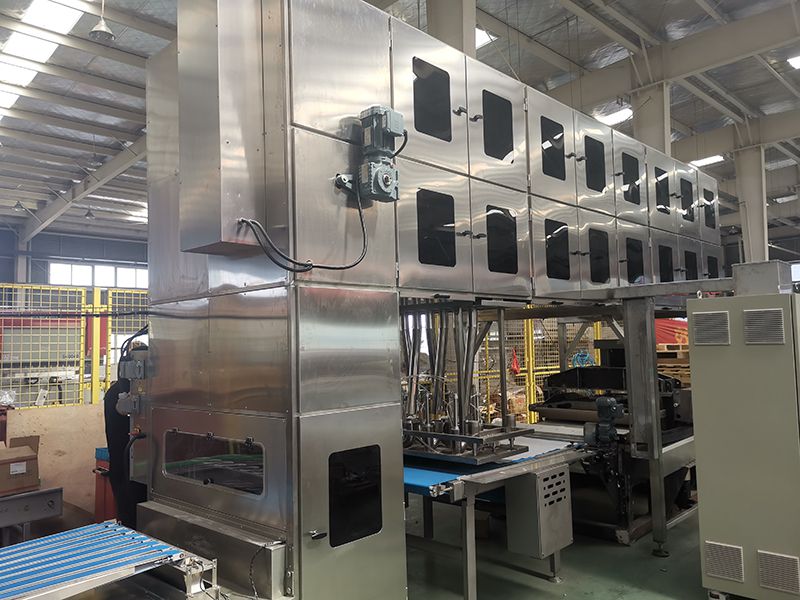

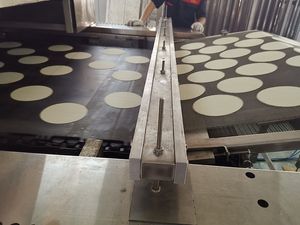

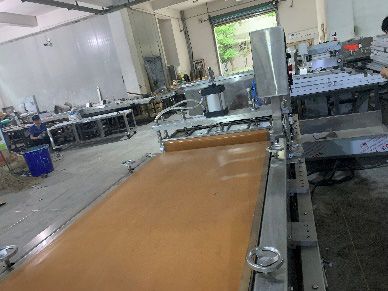

Oven
-

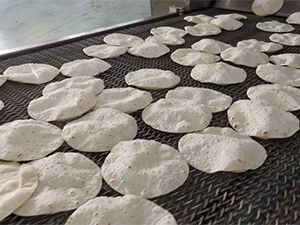

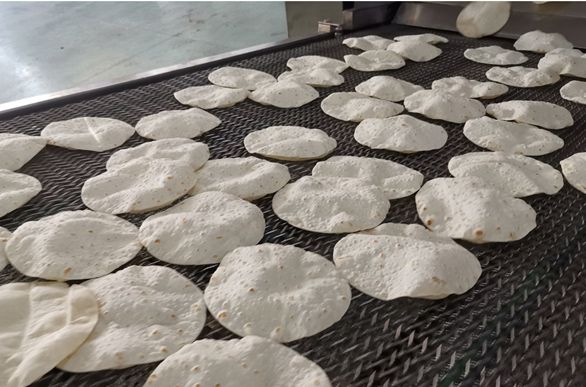

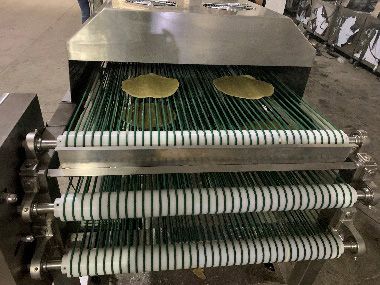

S shape cooler
-

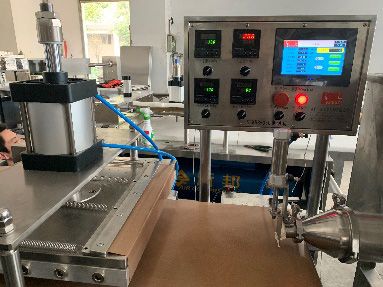

Touch screen
